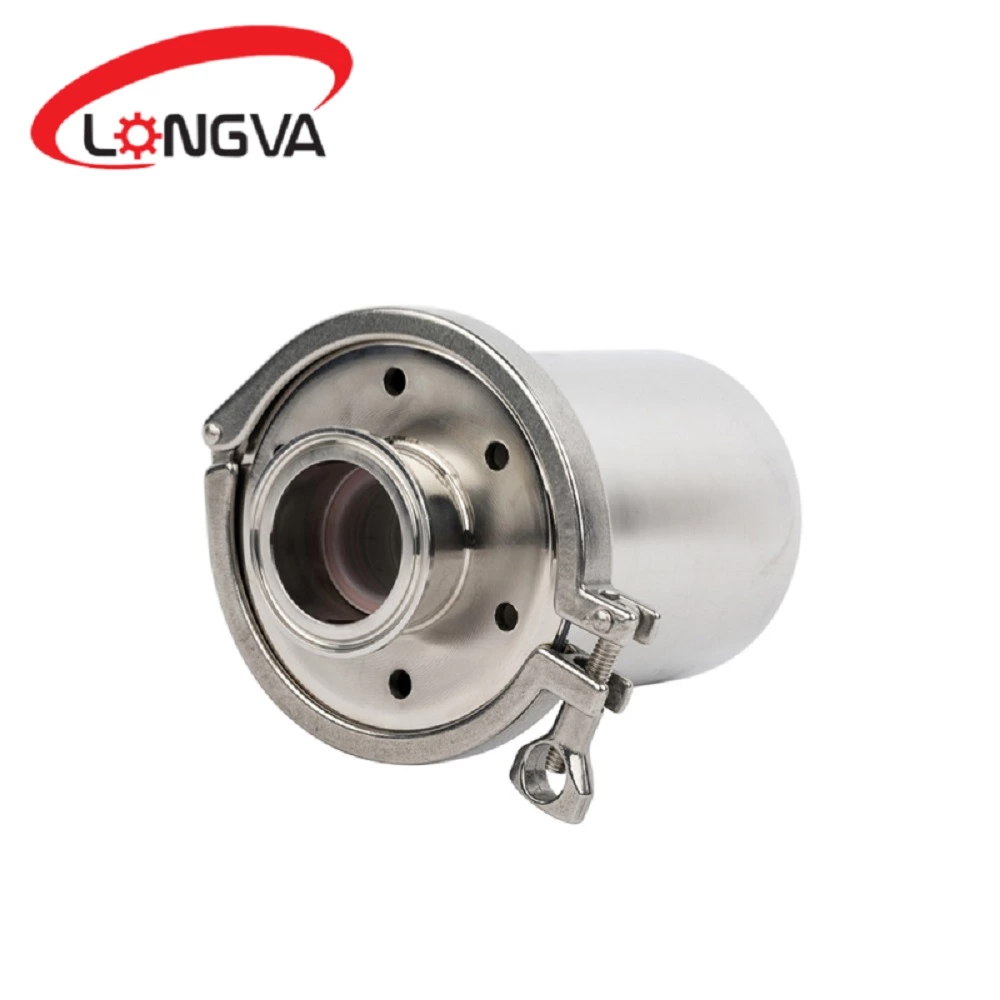

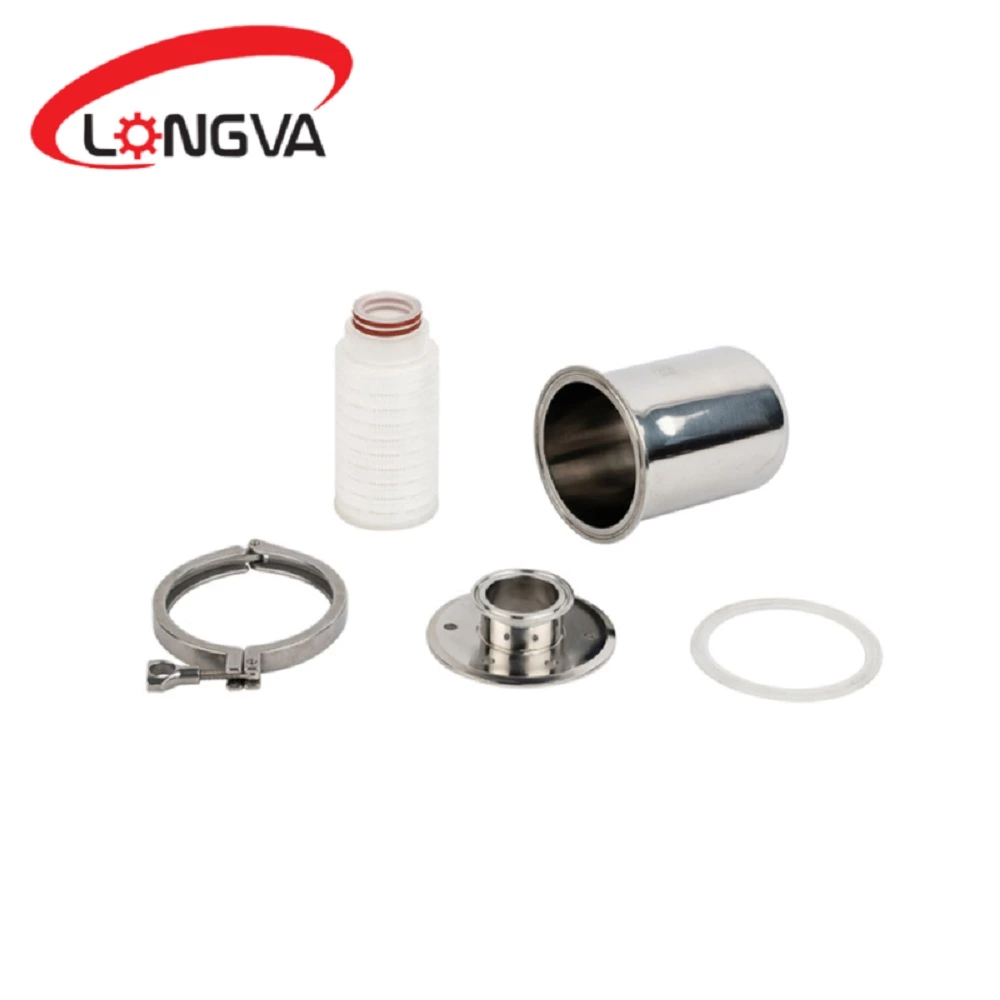

TFR Series rebreather is a kind of filter which will be installed on the top of tank,itprevents the outside particulates comina into the storage tank due to liauid level descends. 1tensures the air purity in the tank.
Concept:
TFR Series rebreather is a kind of filter which will be installed onthe top of tank,it prevents the outside particulates coming intothe storage tank due to liquid level descends. lt ensures the airpurity in the tank.
Specification:
| Housing material | SS304 or SS316L |
| Filter Material | PP, PTFE, Nvlon or PE |
| Connection | Clamp, Thread,Weld or Flange |
| Temperature range | -4~275°F(-20~135°C),EPDM |
| Working Pressure | 14.5-145Psi (1-10Bar) |
| Filter Presicion | 0.1-60um(0.22um is the standard) |
