Sanitary Stainless Steel Tri-Clamp Clean Steam Trap
Product Parameter
| Material | SS304,SS316L | |||
| Size | 1/2",3/4",1",1.5" | |||
| Medium | Steam | |||
| Connection | Welded,tri clamped,threaded | |||
| Mounting Direction | vertical | |||
| Inside Surface Treatment | Ra≥0.4-0.8μm | |||
| Surface Treatment | Ra≥0.8-1.6μm | |||
| Standard | 3A,DIN,SMS,ISO | |||
| Characteristic |
It is used for pressure balance thermostatic steam trap on the branch pipe of reaction kettle, sterilizer and clean steam system. 1. The free flow of condensate and the seamless design in the real sense can minimize bacterial aggregation. 2. The "fault normally open" feature minimizes the possibility of shutdown under critical conditions. 3. The valve nozzle design with large opening can rapidly discharge a large amount of air, ensure rapid start, prevent blockage and ensure continuous operation. 4.Compact structure, convenient installation and easy maintenance. 5. Internal polishing to prevent bacterial growth. |
|||

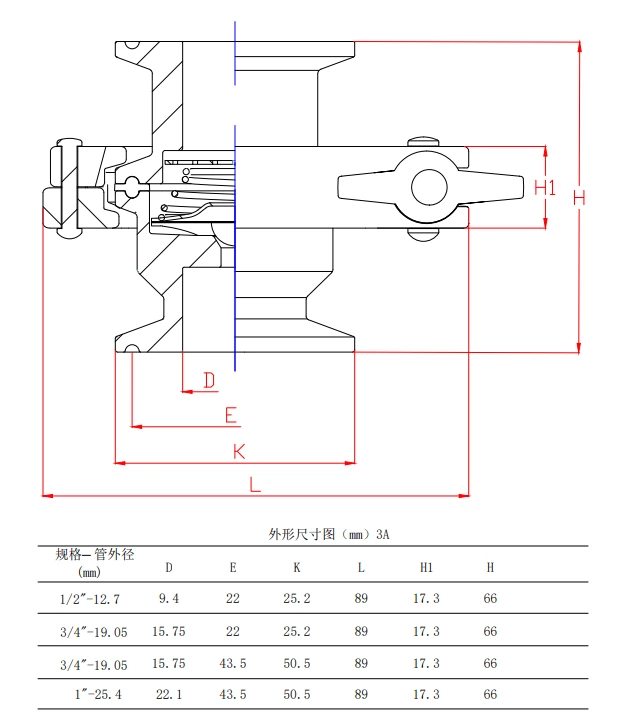

Reference Parameters
