Sanitary Ball Valve

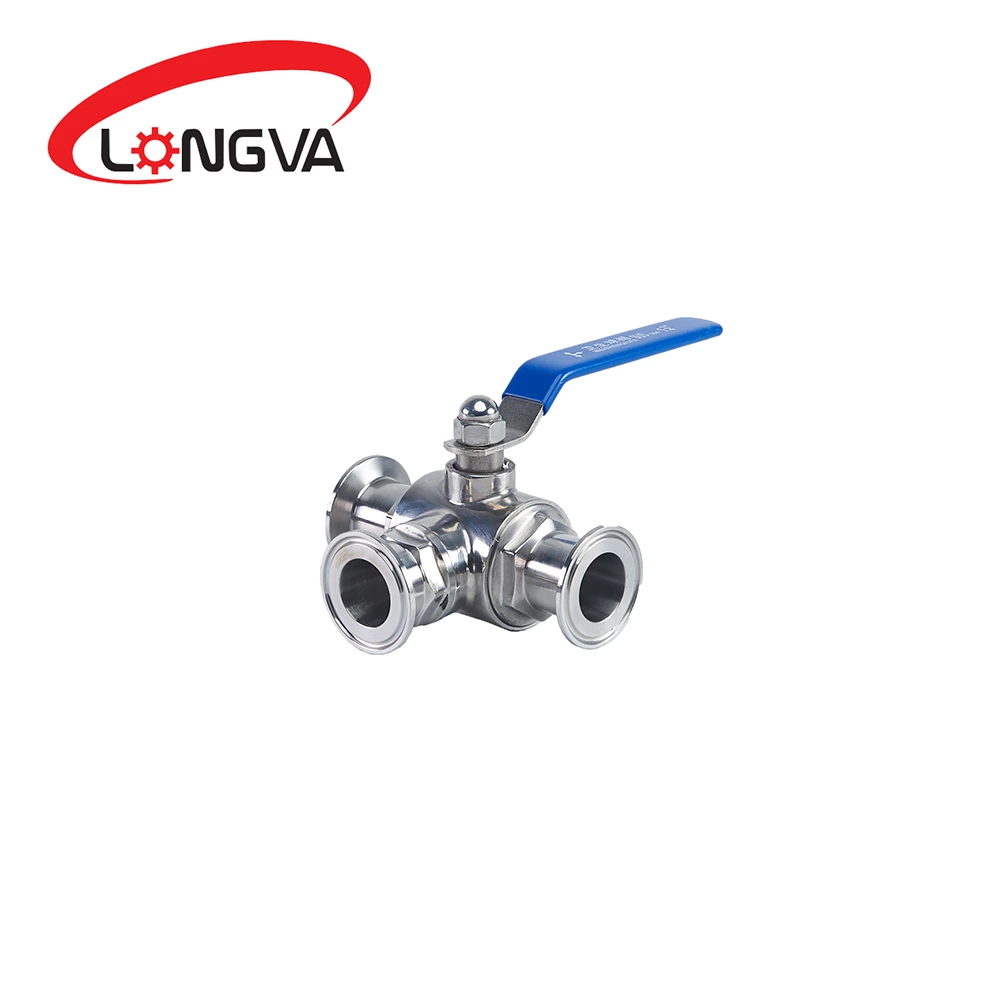

Sanitary Tri- Clamp Three-Way Ball Valve

Specification Port size 1/2"-4" Power Manual Media Oil,Water,Gas.etc. Material SS304,SS316L Connecion Welded,Clamped,Threaded,Flanged Sanitary Three-way Clamp Ball Valve Size D2 A B L 1/2" 25.2 34 59

Place of Origin
Zhengjiang,China
Packing
Plastic bags, cartons, packed in wooden cases
Payment
T/T,Paypal
Material
Stainless Steel
Standard or Nonstandard
Standard
Surface treatment
Mirror polishing and hariline polishing(matt polishing)

Specification

Port size 1/2"-4"
Power Manual
Media Oil,Water,Gas.etc.
Material SS304,SS316L
Connecion Welded,Clamped,Threaded,Flanged





Sanitary Three-way Clamp Ball Valve

Sanitary Tri- Clamp Three-Way Ball Valve

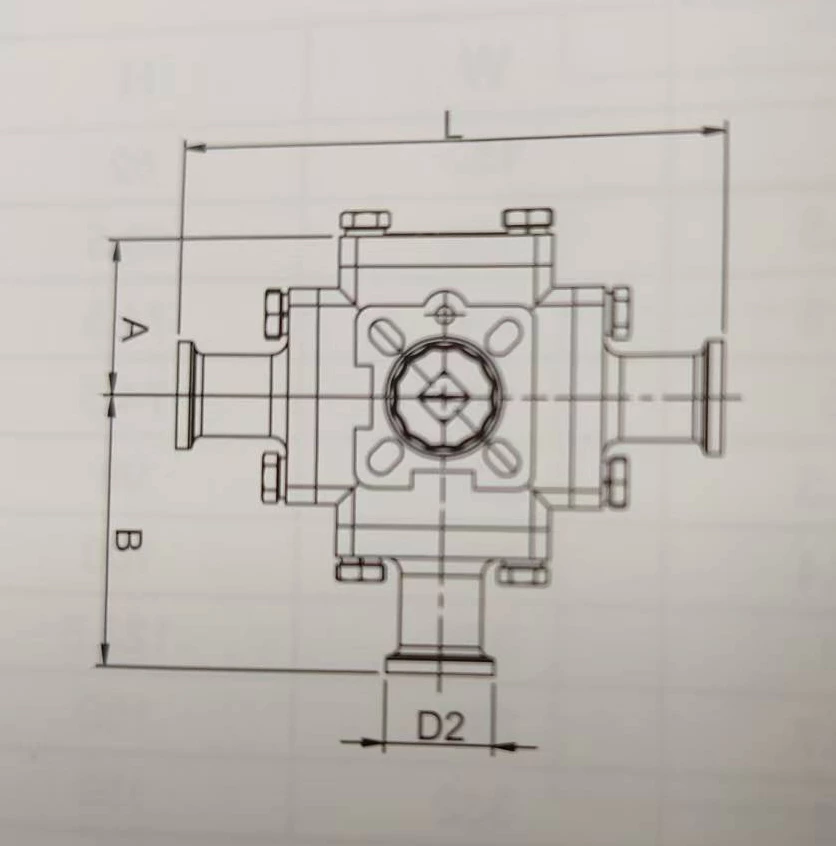

Size D2 A B L
1/2" 25.2 34 59 118
3/4" 25.2 37 63.5 127
1" 50.5 41 76.3 152.6
1 1/2" 50.5 52.5 87.5 175
2" 64 65 100.7 201.4
2 1/2" 77.5 75 113.85 227.7
3" 91 95 130.3 260.6
4" 119 120 160 320
