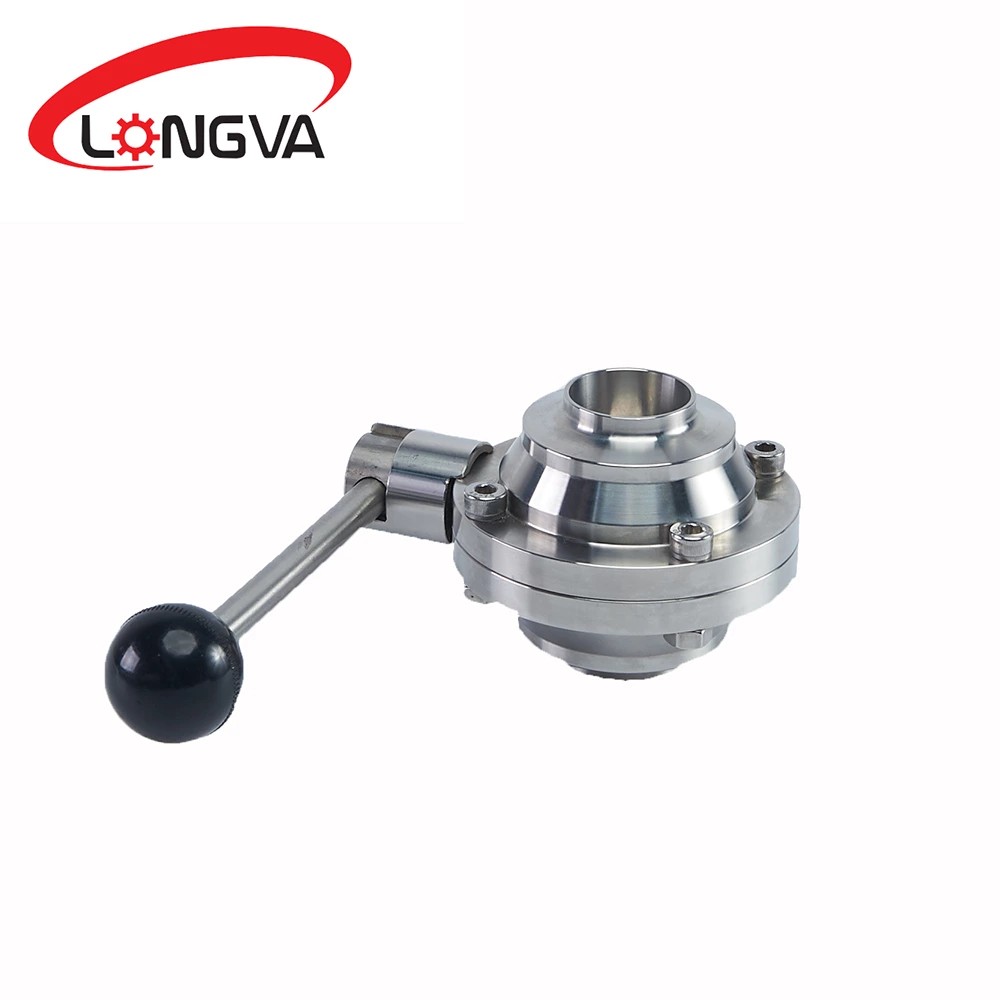

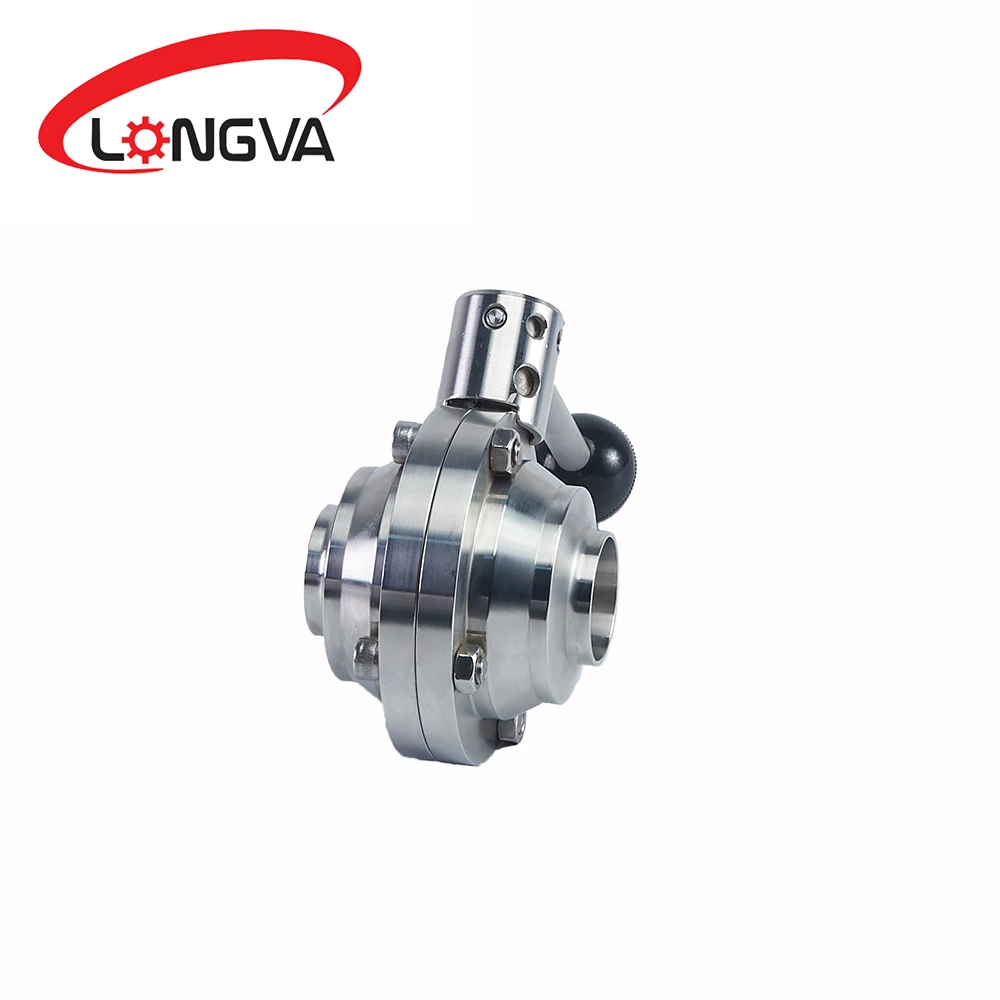

Sanitary Stainless Steel Butterfly-Ball Valve
Reference Parameters
| Working Temperature | -20~ +135℃ |
| Sterilisation Temperature: | 150°C (Max 20 min) |
| Working Pressure | 1.0Mpa（10bar） |
| Medium | Water,Drink,Milk，Pharmacy etc |
| Connection | Welding, Triclamp, Thread, Flange, etc. |
| Sertificates | 3A,DIN,SMS.ISO |

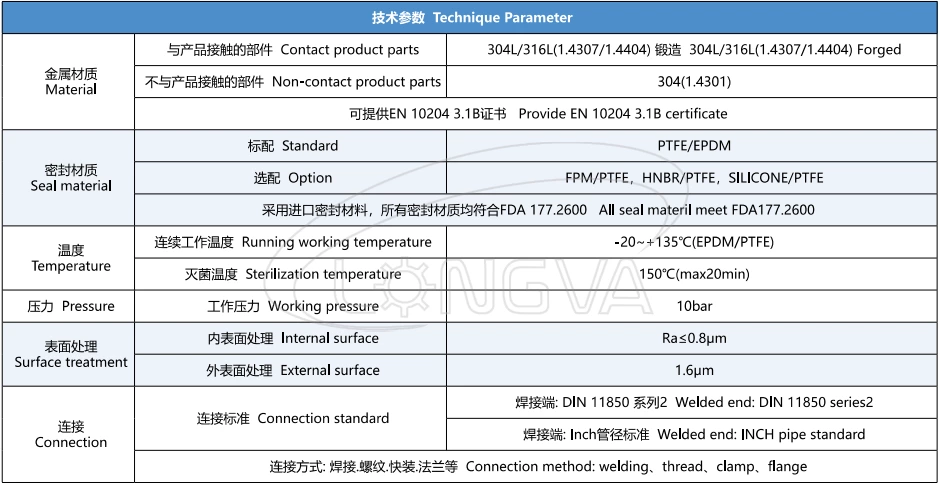

Detailed Parameters

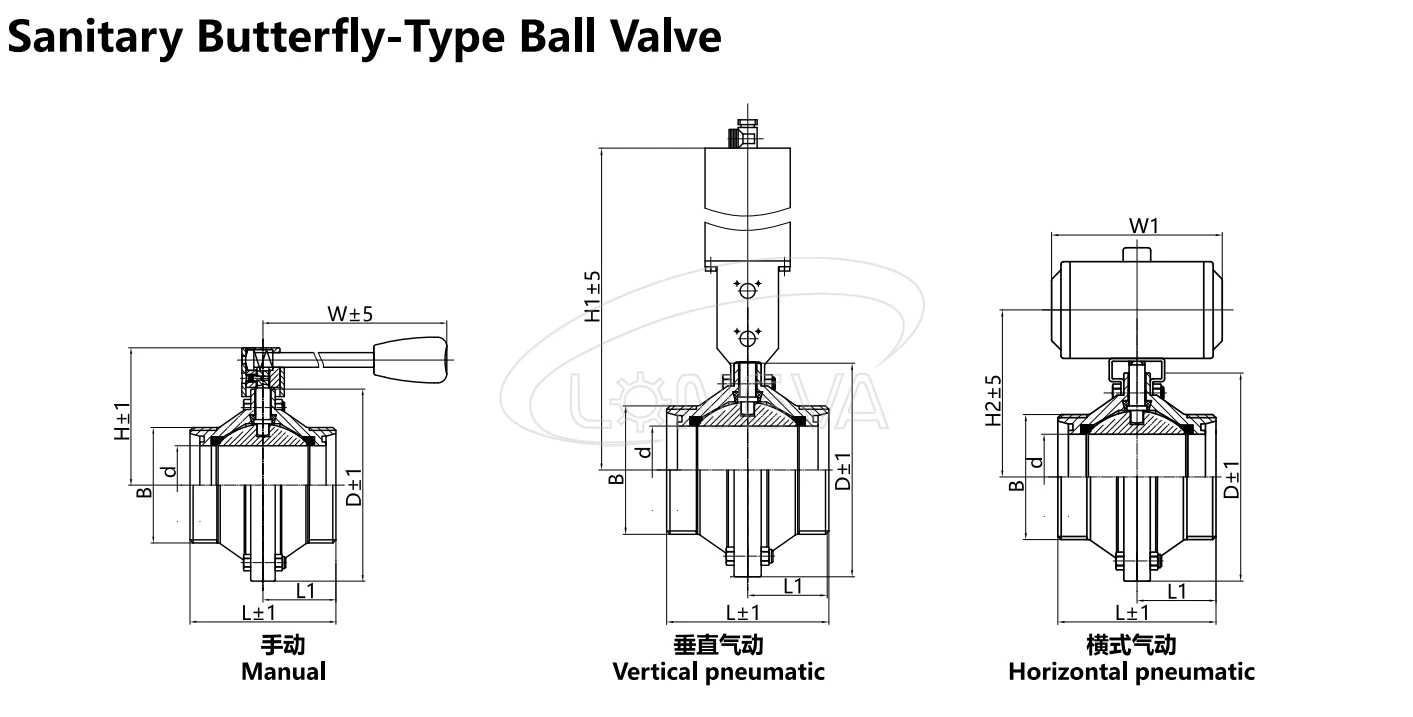

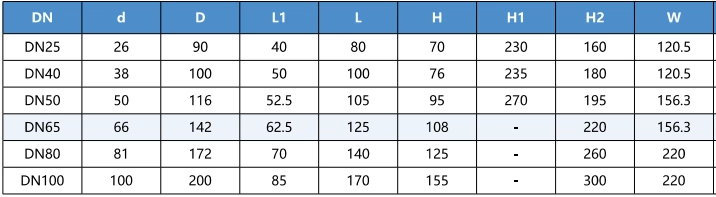

Reference Size
Applications
Optional Types
